ASA Low Torque Brushless Electric Screwdrivers

ASA Low Torque Brushless Electric Screwdrivers

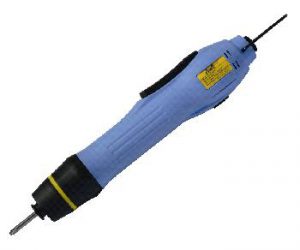

ASA Low Torque High Efficiency Brushless Motor Electric Screwdrivers

Use the high efficiency brushless motor gives unsurpassed durability.
Adopt the carbon less motor that it will reduce the cost effectively.
This brushless motor design that capable in the clean room operation.
Adopts 10μm excellent gold plating switch that it can raise the contact spot life up to 10 million times and reduce the maintenance cost.
No any carbon powder drop out, this will improve environment protection with reduce the air pollution.

Category: Trading products

Description
Reviews (0)

Description

Weight	0.8 kg
BS-S050	Torque Range: 0.15~0.5kgf-cm (0.13~0.43lbf-in) Controller: APS-201A [(Adjustable 9~19VDC), Operation Voltage: 100~240VAC)] No Load Speed: 100~200rpm Available Screw Support: 0.7~1.0mm/0.03~0.04in (Machine Screw) or 0.6~1.0mm/0.02~0.04in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-S100	Torque Range: 0.5~1.0kgf-cm (0.43~0.87lbf-in) Controller: APS-201A [(Adjustable 9~19VDC), Operation Voltage: 100~240VAC)] No Load Speed: 100~200rpm Available Screw Support:1.0~1.8mm/0.04~0.07in (Machine Screw) or 1.0~1.4mm/0.04~0.05in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-100	Torque Range: 0.15~1.0kgf-cm (0.13~0.87lbf-in) Controller: APS-201A [(Adjustable 9~19VDC), Operation Voltage: 100~240VAC)] No Load Speed: 100~200rpm Available Screw Support:0.7~1.8mm/0.03~0.07in (Machine Screw) or 0.6~1.4mm/0.02~0.05in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-100F	Torque Range: 0.15~1.0kgf-cm (0.13~0.87lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 350~500rpm Available Screw Support:0.7~1.8mm/0.03~0.07in (Machine Screw) or 0.6~1.4mm/0.02~0.05in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-200	Torque Range: 0.3~2.0kgf-cm (0.26~1.7lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 600~1000rpm Available Screw Support:1.0~2.2mm/0.04~0.09in (Machine Screw) or 1.0~2.0mm/0.04~0.08in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-250	Torque Range: 0.4~3.0kgf-cm (0.35~2.6lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 450~700rpm Available Screw Support: 1.0~2.6mm/0.04~0.10in (Machine Screw) or 1.0~2.0mm/0.04~0.08in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-300	Torque Range: 0.5~5.0kgf-cm (0.43~4.3lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 650~1000rpm Available Screw Support: 1.0~2.6mm/0.04~0.10in (Machine Screw) or 1.0~2.3mm/0.04~0.09in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-400	Torque Range: 1.0~6.0kgf-cm (0.87~5.2lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 650~1000rpm Available Screw Support: 1.4~2.6mm/0.06~0.10in (Machine Screw) or 1.4~2.3mm/0.06~0.09in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
BS-450	Torque Range: 1.5~10.0kgf-cm (1.3~8.7lbf-in) Controller: APS-301A [(Adjustable 20~30VDC), Operation Voltage: 100~240VAC)] No Load Speed: 650~1000rpm Available Screw Support: 2.0~3.0mm/0.08~0.12in (Machine Screw) or 2.0~2.6mm/0.08~0.10in (Tapping Screw) Available Bit: Ø4 Torque Setting: Stepless Weight: 300g(0.66lb), Length: 202mm(7.95in), Grip Diameter: 30mm(1.18in) ESD type is available for ordering
